OpenGL笔记十七之正交投影变换实验-glm::ortho函数

OpenGL笔记十七之正交投影变换实验-glm::ortho函数

—— 2024-07-30 晚上

bilibili赵新政老师的教程看后笔记

code review!

文章目录

• OpenGL笔记十七之正交投影变换实验-glm::ortho函数
• • 1.glm::ortho函数
  • • 参数详解
    • 返回值
    • 工作原理
    • 正交投影矩阵公式
    • 示例代码
    • 输出结果
    • 解释
  • 2.实验一：使用glm的ortho函数
  • 2.实验二：使用非NDC数据
  • 3.实验三：将顶点向世界坐标系的-z方向推进较大范围（-5）(剪裁）
  • 4.实验四：将可视范围盒子向相机坐标系的+x方向推进1个单位
  • 5.实验五：保持可视范围盒子不动，动相机(1.0,0.0,0.1)
  • 5.实验六：保持可视范围盒子不动，动相机(1.0,0.0,1.0-剪裁)
  • 6.vs
  • 7.fs
  • 8.main.cpp

1.glm::ortho函数

glm::ortho 函数是 OpenGL 数学库 GLM (OpenGL Mathematics) 中用于生成正交投影矩阵的函数。正交投影矩阵在渲染2D场景或需要保持对象真实尺寸的3D场景时非常有用。glm::ortho 函数的定义如下：

glm::mat4 glm::ortho(
float left,
float right,
float bottom,
float top,
float zNear,
float zFar
);

参数详解

返回值

glm::ortho 返回一个 glm::mat4 类型的 4×4 正交投影矩阵。

工作原理

正交投影矩阵用于将3D坐标转换为2D屏幕坐标，它不会像透视投影矩阵那样产生距离缩放效果。正交投影矩阵的生成通过以下步骤实现：

正交投影矩阵公式

正交投影矩阵的公式如下：

示例代码

以下是一个实际使用 glm::ortho 函数的示例：

#include <glm/glm.hpp>
#include <glm/gtc/matrix_transform.hpp>
#include <iostream>

int main() {
float left = –1.0f;
float right = 1.0f;
float bottom = –1.0f;
float top = 1.0f;
float zNear = 0.1f;
float zFar = 100.0f;

glm::mat4 orthoMatrix = glm::ortho(left, right, bottom, top, zNear, zFar);

// 打印正交投影矩阵
for (int i = 0; i < 4; ++i) {
for (int j = 0; j < 4; ++j) {
std::cout << orthoMatrix[i][j] << " ";
}
std::cout << std::endl;
}

return 0;
}

输出结果

运行上述代码将生成并打印正交投影矩阵，输出如下：

1 0 0 0
0 1 0 0
0 0 -0.0200202 -1.002
0 0 0 1

解释

• 第一行和第二行: 映射 x 和 y 坐标范围从 [-1, 1] 到 [-1, 1]，因为 left = -1, right = 1, bottom = -1, top = 1。
• 第三行: 映射 z 坐标范围从 0.1 到 100 到 -1 到 1。
• 第四行: 齐次坐标。

通过理解 glm::ortho 函数的原理和使用方法，可以方便地在 OpenGL 程序中实现正交投影，从而渲染出符合预期的2D或3D场景。

2.实验一：使用glm的ortho函数

NDC坐标

viewMatrix = glm::lookAt(glm::vec3(0.0f,0.0f,1.0f),glm::vec3(0.0f,0.0f,0.0f),glm::vec3(0.0f,1.0f,0.0f));

orthoMatrix = glm::ortho(–2.0f, 2.0f, –2.0f, 2.0f, 2.0f, –2.0f);

float positions[] = {
–0.5f, –0.5f, 0.0f,
0.5f, –0.5f, 0.0f,
0.0f, 0.5f, 0.0f,
};

运行

2.实验二：使用非NDC数据

viewMatrix = glm::lookAt(glm::vec3(0.0f,0.0f,1.0f),glm::vec3(0.0f,0.0f,0.0f),glm::vec3(0.0f,1.0f,0.0f));

orthoMatrix = glm::ortho(–2.0f, 2.0f, –2.0f, 2.0f, 2.0f, –2.0f);

float positions[] = {
–1.0f, 0.0f, 0.0f,
1.0f, 0.0f, 0.0f,
0.0f, 1.0f, 0.0f,
};

运行

3.实验三：将顶点向世界坐标系的-z方向推进较大范围（-5）(剪裁）

float positions[] = {
–1.0f, 0.0f, –5.0f,
1.0f, 0.0f, –5.0f,
0.0f, 1.0f, –5.0f,
};

运行

4.实验四：将可视范围盒子向相机坐标系的+x方向推进1个单位

orthoMatrix = glm::ortho(–1.0f, 3.0f, –2.0f, 2.0f, 2.0f, –2.0f);

float positions[] = {
–1.0f, 0.0f, –5.0f,
1.0f, 0.0f, –5.0f,
0.0f, 1.0f, –5.0f,
};

运行

5.实验五：保持可视范围盒子不动，动相机(1.0,0.0,0.1)

viewMatrix = glm::lookAt(glm::vec3(1.0f,0.0f,0.1f),glm::vec3(0.0f,0.0f,0.0f),glm::vec3(0.0f,1.0f,0.0f));

orthoMatrix = glm::ortho(–2.0f, 2.0f, –2.0f, 2.0f, 2.0f, –2.0f);

float positions[] = {
–1.0f, 0.0f, 0.0f,
1.0f, 0.0f, 0.0f,
0.0f, 1.0f, 0.0f,
};

运行

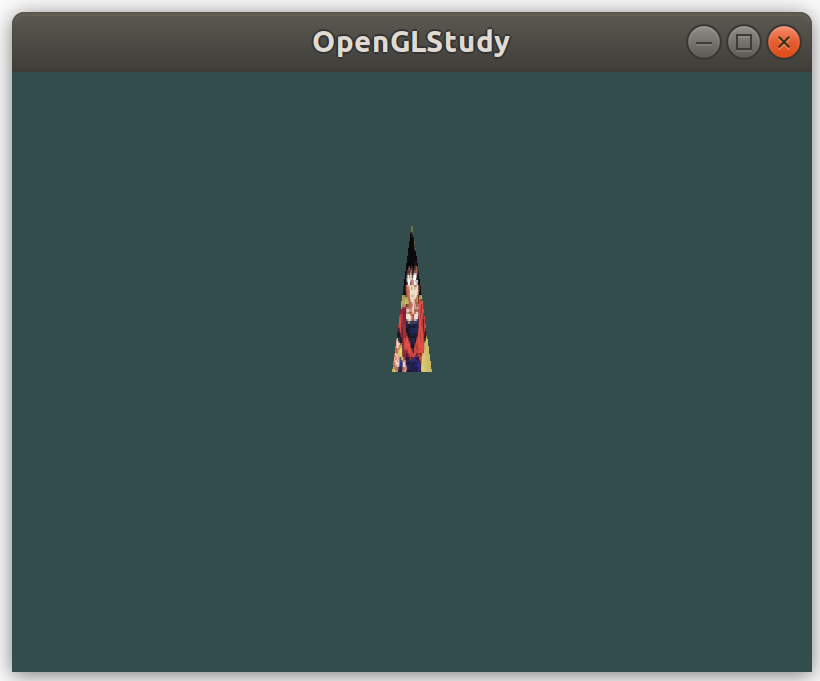

5.实验六：保持可视范围盒子不动，动相机(1.0,0.0,1.0-剪裁)

viewMatrix = glm::lookAt(glm::vec3(1.0f,0.0f,1.0f),glm::vec3(0.0f,0.0f,0.0f),glm::vec3(0.0f,1.0f,0.0f));

orthoMatrix = glm::ortho(–2.0f, 2.0f, –2.0f, 2.0f, 2.0f, –2.0f);

float positions[] = {
–1.0f, 0.0f, 0.0f,
1.0f, 0.0f, 0.0f,
0.0f, 1.0f, 0.0f,
};

运行

6.vs

#version 330 core
layout (location = 0) in vec3 aPos;
layout (location = 1) in vec3 aColor;
layout (location = 2) in vec2 aUV;

out vec3 color;
out vec2 uv;

uniform mat4 transform;
uniform mat4 viewMatrix;
uniform mat4 projectionMatrix;

//aPos作为attribute（属性）传入shader
//不允许更改的
void main()
{
vec4 position = vec4(aPos, 1.0);
position = projectionMatrix * viewMatrix * transform * position;
gl_Position = position;
color = aColor;
uv = aUV;
}

7.fs

#version 330 core
out vec4 FragColor;

in vec3 color;
in vec2 uv;

uniform sampler2D sampler;

void main()
{
FragColor = texture(sampler, uv);
}

8.main.cpp

#include <iostream>

#include "glframework/core.h"
#include "glframework/shader.h"
#include <string>
#include <assert.h>//断言
#include "wrapper/checkError.h"
#include "application/Application.h"
#include "glframework/texture.h"

/*
*┌────────────────────────────────────────────────┐
*│　目 标： 学习使用正交投影矩阵
*│　讲 师： 赵新政(Carma Zhao)
*│　拆分目标：
*-1 学会使用glm的ortho函数 （orthographic）
***ortho的数据是摄像机坐标系下***
1.1 使用glm的ortho函数，生成了一个正交投影矩阵
此矩阵的作用是：生成一个投影盒子，将内部顶点转化到NDC坐标系
1.2 在vertexShader当中，添加了projectionMatrix的uniform变量
1.3 在每一帧渲染之前，更新projectionMatrix这个uniform

*-2 学习使用非NDC数据
*1 按照标准案例进行构建（ppt上）
*2 将顶点向世界坐标系的-z方向推进较大范围（-5）(剪裁）
*3 将可视范围盒子向相机坐标系的+x方向推进1个单位
*4 保持可视范围盒子不动，动相机(1.0,0.0,0.1)(1.0,0.0,1.0-剪裁)
*
*-3 理解剪裁
*└────────────────────────────────────────────────┘
*/

GLuint vao;
Shader* shader = nullptr;
Texture* texture = nullptr;
glm::mat4 transform(1.0f);
glm::mat4 viewMatrix(1.0f);
glm::mat4 orthoMatrix(1.0f);

void OnResize(int width, int height) {
GL_CALL(glViewport(0, 0, width, height));
std::cout << "OnResize" << std::endl;
}

void OnKey(int key, int action, int mods) {
std::cout << key << std::endl;
}

void prepareVAO() {
//1 准备positions colors
// float positions[] = {
// -0.5f, -0.5f, 0.0f,
// 0.5f, -0.5f, 0.0f,
// 0.0f, 0.5f, 0.0f,
// };
float positions[] = {
–1.0f, 0.0f, 0.0f,
1.0f, 0.0f, 0.0f,
0.0f, 1.0f, 0.0f,
};

float colors[] = {
1.0f, 0.0f,0.0f,
0.0f, 1.0f,0.0f,
0.0f, 0.0f,1.0f,
};

float uvs[] = {
0.0f, 0.0f,
1.0f, 0.0f,
0.5f, 1.0f,
};

unsigned int indices[] = {
0, 1, 2,
};

//2 VBO创建
GLuint posVbo, colorVbo, uvVbo;
glGenBuffers(1, &posVbo);
glBindBuffer(GL_ARRAY_BUFFER, posVbo);
glBufferData(GL_ARRAY_BUFFER, sizeof(positions), positions, GL_STATIC_DRAW);

glGenBuffers(1, &colorVbo);
glBindBuffer(GL_ARRAY_BUFFER, colorVbo);
glBufferData(GL_ARRAY_BUFFER, sizeof(colors), colors, GL_STATIC_DRAW);

glGenBuffers(1, &uvVbo);
glBindBuffer(GL_ARRAY_BUFFER, uvVbo);
glBufferData(GL_ARRAY_BUFFER, sizeof(uvs), uvs, GL_STATIC_DRAW);

//3 EBO创建
GLuint ebo;
glGenBuffers(1, &ebo);
glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, ebo);
glBufferData(GL_ELEMENT_ARRAY_BUFFER, sizeof(indices), indices, GL_STATIC_DRAW);

//4 VAO创建
glGenVertexArrays(1, &vao);
glBindVertexArray(vao);

//5 绑定vbo ebo 加入属性描述信息
//5.1 加入位置属性描述信息
glBindBuffer(GL_ARRAY_BUFFER, posVbo);
glEnableVertexAttribArray(0);
glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, sizeof(float) * 3, (void*)0);

//5.2 加入颜色属性描述数据
glBindBuffer(GL_ARRAY_BUFFER, colorVbo);
glEnableVertexAttribArray(1);
glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, sizeof(float) * 3, (void*)0);

//5.3 加入uv属性描述数据
glBindBuffer(GL_ARRAY_BUFFER, uvVbo);
glEnableVertexAttribArray(2);
glVertexAttribPointer(2, 2, GL_FLOAT, GL_FALSE, sizeof(float) * 2, (void*)0);

//5.4 加入ebo到当前的vao
glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, ebo);

glBindVertexArray(0);
}

void prepareShader() {
shader = new Shader("assets/shaders/vertex.glsl","assets/shaders/fragment.glsl");
}

void prepareTexture() {
texture = new Texture("assets/textures/goku.jpg", 0);
}

void prepareCamera() {
//lookat:生成一个viewMatrix
//eye:当前摄像机所在的位置
//center:当前摄像机看向的那个点
//up:穹顶向量
viewMatrix = glm::lookAt(glm::vec3(1.0f,0.0f,1.0f),glm::vec3(0.0f,0.0f,0.0f),glm::vec3(0.0f,1.0f,0.0f));
// viewMatrix = glm::lookAt(glm::vec3(1.0f,0.0f,0.1f),glm::vec3(0.0f,0.0f,0.0f),glm::vec3(0.0f,1.0f,0.0f));
// viewMatrix = glm::lookAt(glm::vec3(0.0f,0.0f,1.0f),glm::vec3(0.0f,0.0f,0.0f),glm::vec3(0.0f,1.0f,0.0f));
}

void prepareOrtho() {
orthoMatrix = glm::ortho(–2.0f, 2.0f, –2.0f, 2.0f, 2.0f, –2.0f);
}

void render() {
//执行opengl画布清理操作
GL_CALL(glClear(GL_COLOR_BUFFER_BIT));

//绑定当前的program
shader->begin();
shader->setInt("sampler", 0);
shader->setMatrix4x4("transform", transform);
shader->setMatrix4x4("viewMatrix", viewMatrix);
shader->setMatrix4x4("projectionMatrix", orthoMatrix);

//绑定当前的vao
GL_CALL(glBindVertexArray(vao));

//发出绘制指令
GL_CALL(glDrawElements(GL_TRIANGLES, 3, GL_UNSIGNED_INT, 0));
GL_CALL(glBindVertexArray(0));

shader->end();
}

int main() {
if (!app->init(800, 600)) {
return –1;
}

app->setResizeCallback(OnResize);
app->setKeyBoardCallback(OnKey);

//设置opengl视口以及清理颜色
GL_CALL(glViewport(0, 0, 800, 600));
GL_CALL(glClearColor(0.2f, 0.3f, 0.3f, 1.0f));

prepareShader();
prepareVAO();
prepareTexture();
prepareCamera();
prepareOrtho();

while (app->update()) {
render();
}

app->destroy();

return 0;
}
