银河麒麟高级服务器操作系统V10 SP3安装Zabbix 6.4

环境描述

部署环境及版本说明 操作系统：Kylin Linux Advanced Server V10 SP3 Zabbix:Zabbix 6.4.1 for rhel（组件包含：Server,Frontend,Agent）数据库（Mysql）WEB SERVER（Apache） Mysql数据库：mysql Ver 8.0.30以上 PHP：PHP 7.4.33 Httpd：Apache/2.4.43 银河麒麟兼容适配查询 https://eco.kylinos.cn/zoology/commercial.html

安装

1.安装Httpd

dnf install -y httpd #dnf 安装Apache/2.4.43
systemctl start httpd #启动Httpd服务
systemctl status httpd #检查Httpd服务状态
systemctl enable httpd #将Httpd服务设置开机启动
httpd -v #查看Httpd版本信息

设置防火墙策略

firewall-cmd –zone=public –add-port=80/tcp –permanent #添加80端口
systemctl restart firewalld.service #重启防火墙
firewall-cmd –list-all #检测端口设置是否生效

2.安装php

wget https://www.php.net/distributions/php-7.4.33.tar.gz #下载php安装包
tar -zxvf php-7.4.33.tar.gz #解压安装包
cd php-7.4.33/

安装库支持

yum install libxml2-devel libjpeg-devel libpng-devel openssl-devel libcurl-devel libxslt-devel libzip-devel wget vim unzip oniguruma-devel gd gd-devel freetype freetype-devel sqlite-devel

安装完成反馈信息

编译安装参数设置

./configure –prefix=/usr/local/php74 –with-config-file-path=/usr/local/php74/etc –with-mysqli=mysqlnd –with-pdo-mysql=mysqlnd –enable-gd –with-jpeg=/usr/local/jpeg –with-freetype=/usr/local/freetype –with-xpm=/usr/lib64 –with-zlib-dir=/usr/local/zlib –with-iconv –with-libxml –enable-xml –enable-bcmath –enable-shmop –enable-sysvsem –enable-inline-optimization –enable-opcache –enable-mbregex –enable-fpm –enable-mbstring –enable-ftp –with-openssl –enable-pcntl –enable-sockets –with-xmlrpc –with-zip –enable-soap –without-pear –with-gettext –enable-session –with-curl –enable-ctype –enable-mysqlnd –enable-pdo –with-zlib –with-bz2

参数设置检查反馈信息

执行编译安装命令

make -j4 && make install

编译安装完成反馈信息

echo $?
0 #检查make执行结果，为0表示正常

配置文件导入

cd /usr/local/php74/etc
mv php-fpm.conf.default php-fpm.conf
mv php-fpm.d/www.conf.default php-fpm.d/www.conf
cd /soft/php-7.4.33/ #改变当前目录至php安装源文件目录
cp php.ini-development /usr/local/php74/etc/php.ini

添加环境变量

建立软链接（方便后续安装新版本的php） ln -s /usr/local/php74 /usr/local/php vim /etc/profile 在末尾添加： export PHP_PATH=/usr/local/php export PATH=.:

P

A

T

H

:

PATH:

PATH:PHP_PATH/bin:$PHP_PATH/sbin

source /etc/profile

编辑完后，执行 source /etc/profile 重新加载环境变量

设置开机启动

执行 命令 vim /etc/systemd/system/php-fpm.service，添加以下脚本

[Unit]
Description=PHP FastCGI Process Manager
After=network.target
[Service]
Type=simple
ExecStart=/usr/local/php74/sbin/php-fpm –nodaemonize –fpm-config /usr/local/php74/etc/php-fpm.conf
ExecReload=/bin/kill -USR2 $MAINPID
[Install]
WantedBy=multi-user.target

保存后，执行命令 systemctl start php-fpm 启动服务，执行命令 systemctl enable php-fpm 设置开机启动

systemctl start php-fpm #启动php

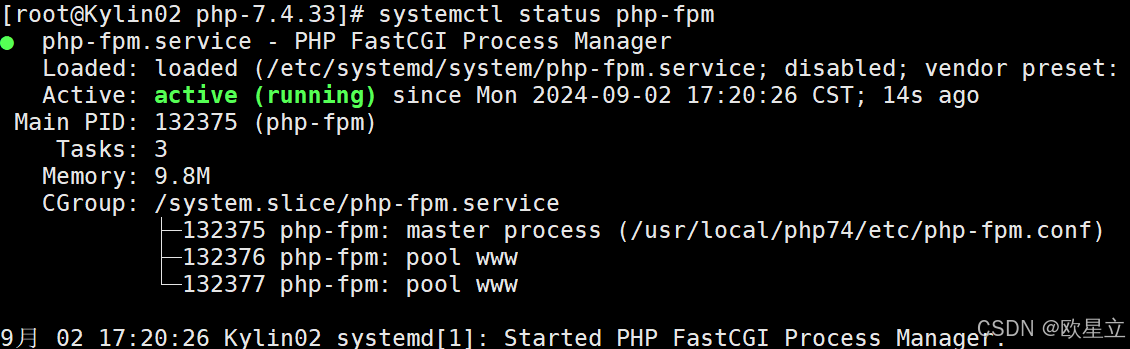

systemctl status php-fpm #查看php运行状况
systemctl enable php-fpm #设置php开机启动

查看php运行状况

php -v

查看php版本信息

3.安装Mysql数据库

检查系统默认是否安装mariadb数据库

rpm -qa|grep mariadb

已安装mariadb-connector-c-3.0.6-8.ky10.x86_64 卸载mariadb数据库

rpm -e –nodeps mariadb-connector-c-3.0.6-8.ky10.x86_64

下载Mysql数据安装包，这里下载的是8.0.32

wget https://cdn.mysql.com/archives/mysql-8.0/mysql-8.0.32-1.el8.x86_64.rpm-bundle.tar

解压安装包

tar -xf mysql-8.0.32-1.el8.x86_64.rpm-bundle.tar

安装Mysql相关程序

rpm -ivh mysql-community-icu-data-files-8.0.32-1.el8.x86_64.rpm mysql-community-libs-8.0.32-1.el8.x86_64.rpm mysql-community-common-8.0.32-1.el8.x86_64.rpm mysql-community-client-plugins-8.0.32-1.el8.x86_64.rpm mysql-community-client-8.0.32-1.el8.x86_64.rpm mysql-community-server-8.0.32-1.el8.x86_64.rpm

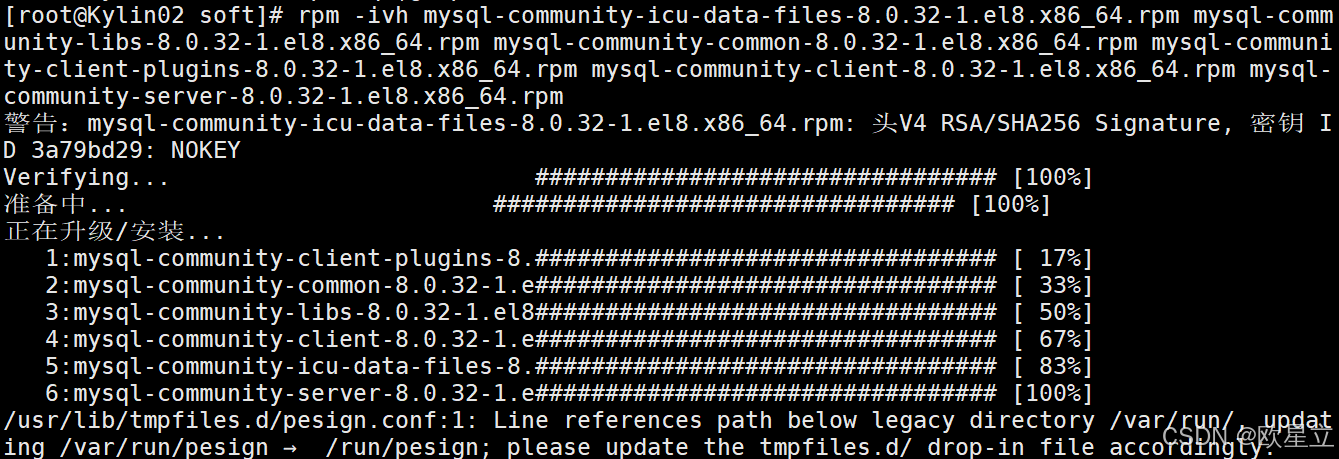

安装报错了，需要去修改一个配置文件 /usr/lib/tmpfiles.d/pesign.conf

vim /usr/lib/tmpfiles.d/pesign.conf

将/var/run/pesign 改为/run/pesign

再次安装

rpm -ivh mysql-community-icu-data-files-8.0.32-1.el8.x86_64.rpm mysql-community-libs-8.0.32-1.el8.x86_64.rpm mysql-community-common-8.0.32-1.el8.x86_64.rpm mysql-community-client-plugins-8.0.32-1.el8.x86_64.rpm mysql-community-client-8.0.32-1.el8.x86_64.rpm mysql-community-server-8.0.32-1.el8.x86_64.rpm

安装成功，启动Mysql数据并检查运行状态

systemctl start mysqld
systemctl status mysqld
netstat -nlpt | grep mysqld
systemctl enable mysqld

查看mysql初始化密码

cat /var/log/mysqld.log | grep password

登录数据库并修改初始化密码

mysql -uroot -p
mysql> alter user 'root'@'localhost' identified by 'Root123..';
mysql> flush privileges;
mysql> select user,host from mysql.user;
mysql> quit;

4.安装Zabbix 6.4

检查net-snmp版本

rpm -qa | grep net-snmp

net-snmp版本应高于5.7.18

执行Zabbix安装命令

rpm -Uvh https://repo.zabbix.com/zabbix/6.4/rhel/8/x86_64/zabbix-release-6.4-1.el8.noarch.rpm
dnf clean all
dnf install zabbix-server-mysql zabbix-web-mysql zabbix-apache-conf zabbix-sql-scripts zabbix-selinux-policy zabbix-agent

安装报错信息缺失libevent-2.1、libevent_pthreads-2.1
