Emqx入门系列【3】客户端认证方式之-内置用户认证

一、EMQX 认证方式

EMQ X 是一个高度可扩展的 MQTT 消息服务器，它支持多种认证和授权机制来确保安全性。以下是 EMQ X 支持的一些常见认证方式：

每种认证方式都有其适用场景和配置方法。例如，数据库认证适用于需要集中管理用户信息的大型系统，而 MQTT 证书认证适用于需要加密通信的金融或医疗行业。

要配置认证方式，通常需要在 EMQ X 的配置文件 emqx.conf 中进行相应的设置，或者通过 EMQ X Dashboard 进行配置

二、EMQX常用认证方式（EMQX 界面配置）

1.内置用户认证

1.1 创建内置用户认证客户端认证

1.2 选择数据库类型

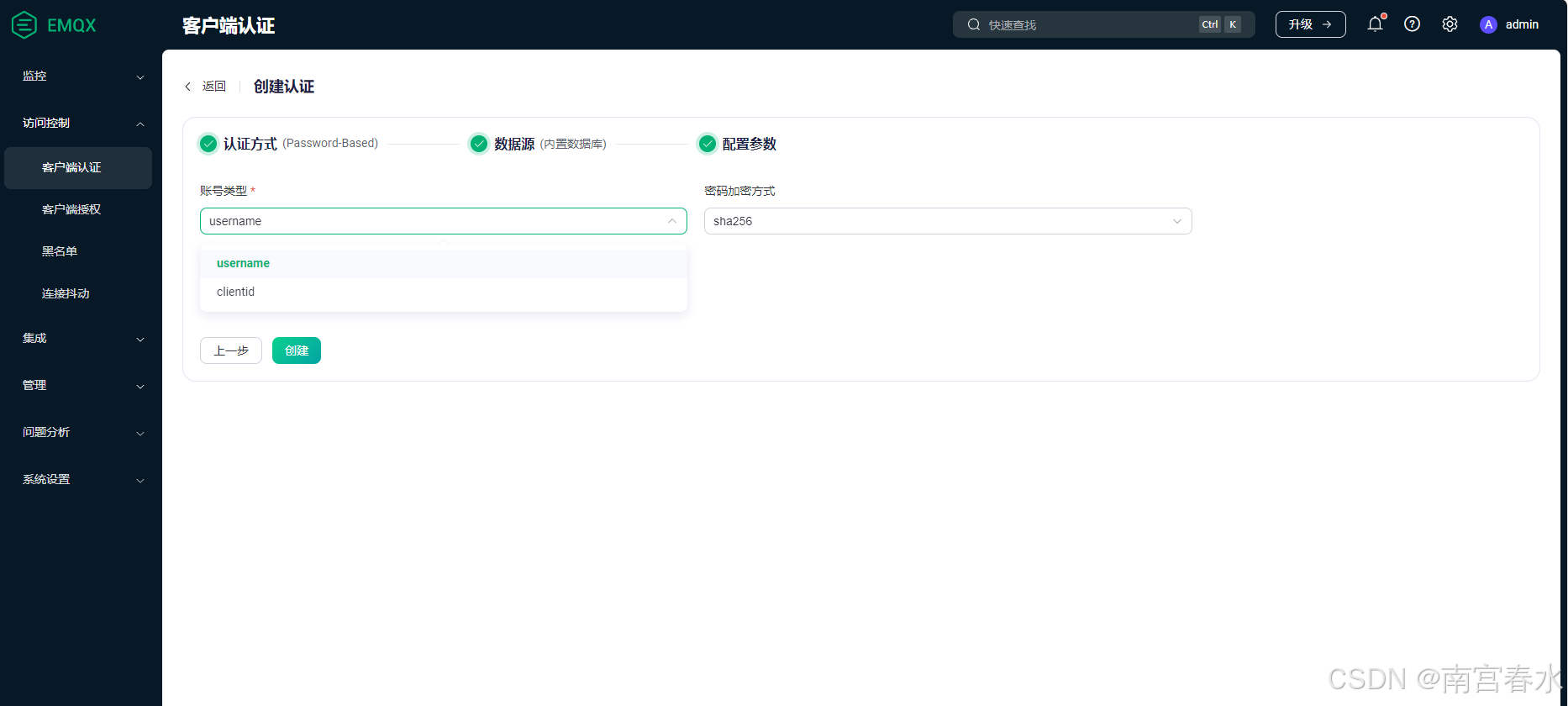

1.3 选择账号类型 这里选择username

1.4 创建用户

1.5 java实现emqt集成

1.5.1 pom.xml 中引入 mqtt相关jar

<!– mqtt –>
<dependency>
<groupId>org.springframework.integration</groupId>
<artifactId>spring-integration-mqtt</artifactId>
</dependency>

1.5.2  application.yml 配置mq连接信息

1.5.3  编写实现代码

MqttConfiguration.java
package com.chopin.mqtt.mqtt.config;

import com.chopin.mqtt.mqtt.client.MyMQTTClient;
import com.chopin.mqtt.mqtt.utils.JwtUtil;
import lombok.Data;
import lombok.extern.slf4j.Slf4j;
import org.eclipse.paho.client.mqttv3.MqttException;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
* @class MqttConfiguration
* @description
* @copyright Copyright: 2024-2030
* @creator chopin
* @create-time 2024/8/08 14:38
**/
@Configuration
@Slf4j
@Data
public class MqttConfiguration {

@Value("${mqtt.host}")
String host;
@Value("${mqtt.username}")
String username;
@Value("${mqtt.password}")
String password;
@Value("${mqtt.clientId}")
String clientId;
@Value("${mqtt.timeout}")
int timeOut;
@Value("${mqtt.keepalive}")
int keepAlive;
@Value("${mqtt.topic1}")
public String topic1;
@Value("${mqtt.topic2}")
public String topic2;
@Value("${mqtt.topic3}")
public String topic3;
@Value("${mqtt.topic4}")
public String topic4;

@Bean//注入spring
public MyMQTTClient myMQTTClient() {
MyMQTTClient myMQTTClient = new MyMQTTClient(host, username, password, clientId, timeOut, keepAlive);

try {
myMQTTClient.connect();
//不同的主题
// myMQTTClient.subscribe(topic1, 1);
// myMQTTClient.subscribe(topic2, 1);
// myMQTTClient.subscribe(topic3, 1);
// myMQTTClient.subscribe(topic4, 1);

} catch (MqttException e) {
log.error("MQTT connect exception:{} ", e.getMessage());
}

return myMQTTClient;
}

}

MyMQTTClient.java
package com.chopin.mqtt.mqtt.client;

import com.chopin.mqtt.mqtt.callback.MyMQTTCallback;
import lombok.extern.slf4j.Slf4j;
import org.eclipse.paho.client.mqttv3.*;
import org.eclipse.paho.client.mqttv3.persist.MemoryPersistence;

/**
* @class MyMQTTClient
* @description
* @copyright Copyright: 2024-2030
* @creator chopin
* @create-time 2024/8/08 14:41
**/
@Slf4j
public class MyMQTTClient {
private static MqttClient client;
private String host;
private String username;
private String password;
private String clientId;
private int timeout;
private int keepalive;

public MyMQTTClient(String host, String username, String password, String clientId, int timeOut, int keepAlive) {
this.host = host;
this.username = username;
this.password = password;
this.clientId = clientId;
this.timeout = timeOut;
this.keepalive = keepAlive;
}

public static MqttClient getClient() {
return client;
}

public static void setClient(MqttClient client) {
MyMQTTClient.client = client;
}

/**
* 设置mqtt连接参数
*
* @param username
* @param password
* @param timeout
* @param keepalive
* @return
*/
public MqttConnectOptions setMqttConnectOptions(String username, String password, int timeout, int keepalive) {
MqttConnectOptions options = new MqttConnectOptions();
options.setUserName(username);
options.setPassword(password.toCharArray());
options.setConnectionTimeout(timeout);
options.setKeepAliveInterval(keepalive);
options.setCleanSession(true);
options.setAutomaticReconnect(true);
return options;
}

/**
* 连接mqtt服务端，得到MqttClient连接对象
*/
public void connect() throws MqttException {
if (client == null) {
client = new MqttClient(host, clientId, new MemoryPersistence());
client.setCallback(new MyMQTTCallback(MyMQTTClient.this));
}
MqttConnectOptions mqttConnectOptions = setMqttConnectOptions(username, password, timeout, keepalive);
if (!client.isConnected()) {
client.connect(mqttConnectOptions);
} else {
client.disconnect();
client.connect(mqttConnectOptions);
}
log.info("MQTT connect success");//未发生异常，则连接成功
}

/**
* 发布，默认qos为0，非持久化
*
* @param pushMessage
* @param topic
*/
public void publish(String pushMessage, String topic) {
publish(pushMessage, topic, 0, false);
}

/**
* 发布消息
*
* @param pushMessage
* @param topic
* @param qos
* @param retained:留存
*/
public void publish(String pushMessage, String topic, int qos, boolean retained) {
MqttMessage message = new MqttMessage();
message.setPayload(pushMessage.getBytes());
message.setQos(qos);
message.setRetained(retained);
MqttTopic mqttTopic = MyMQTTClient.getClient().getTopic(topic);
if (null == mqttTopic) {
log.error("topic is not exist");
}
MqttDeliveryToken token;//Delivery:配送
synchronized (this) {//注意：这里一定要同步，否则，在多线程publish的情况下，线程会发生死锁，分析见文章最后补充
try {
token = mqttTopic.publish(message);//也是发送到执行队列中，等待执行线程执行，将消息发送到消息中间件
token.waitForCompletion(1000L);
} catch (Exception e) {
e.printStackTrace();
}
}
}

/**
* 订阅某个主题
*
* @param topic
* @param qos
*/
public void subscribe(String topic, int qos) {
try {
MyMQTTClient.getClient().subscribe(topic, qos);
} catch (MqttException e) {
e.printStackTrace();
}
}

/**
* 取消订阅主题
*
* @param topic 主题名称
*/
public void cleanTopic(String topic) {
if (client != null && client.isConnected()) {
try {
client.unsubscribe(topic);
} catch (MqttException e) {
e.printStackTrace();
}
} else {
System.out.println("取消订阅失败！");
}
}
}

MyMQTTCallback.java

package com.chopin.mqtt.mqtt.callback;

import com.chopin.mqtt.mqtt.client.MyMQTTClient;
import com.chopin.mqtt.mqtt.config.MqttConfiguration;
import com.chopin.mqtt.mqtt.dto.MqttMsg;
import com.chopin.mqtt.mqtt.utils.SpringUtils;
import io.netty.util.CharsetUtil;
import lombok.extern.slf4j.Slf4j;
import org.eclipse.paho.client.mqttv3.IMqttDeliveryToken;
import org.eclipse.paho.client.mqttv3.MqttCallbackExtended;
import org.eclipse.paho.client.mqttv3.MqttException;
import org.eclipse.paho.client.mqttv3.MqttMessage;
import com.alibaba.fastjson.JSON;
import java.util.Map;

/**
* @class MyMQTTCallback
* @description
* @copyright Copyright: 2024-2030
* @creator chopin
* @create-time 2024/8/08 14:43
**/
@Slf4j
public class MyMQTTCallback implements MqttCallbackExtended {
//手动注入
private MqttConfiguration mqttConfiguration = SpringUtils.getBean(MqttConfiguration.class);
private MyMQTTClient myMQTTClient;
public MyMQTTCallback(MyMQTTClient myMQTTClient) {
this.myMQTTClient = myMQTTClient;
}
/**
* 丢失连接，可在这里做重连
* 只会调用一次
*
* @param throwable
*/
@Override
public void connectionLost(Throwable throwable) {
log.error("mqtt connectionLost 连接断开，5S之后尝试重连: {}", throwable.getMessage());
long reconnectTimes = 1;
while (true) {
try {
if (MyMQTTClient.getClient().isConnected()) {
//判断已经重新连接成功 需要重新订阅主题 可以在这个if里面订阅主题 或者 connectComplete（方法里面） 看你们自己选择
log.warn("mqtt reconnect success end 重新连接 重新订阅成功");
return;
}
reconnectTimes+=1;
log.warn("mqtt reconnect times = {} try again… mqtt重新连接时间 {}", reconnectTimes, reconnectTimes);
MyMQTTClient.getClient().reconnect();
} catch (MqttException e) {
log.error("mqtt断连异常", e);
}
try {
Thread.sleep(5000);
} catch (InterruptedException e1) {
e1.printStackTrace();
}
}
}
/**
* @param topic
* @param mqttMessage
* @throws Exception
* subscribe后得到的消息会执行到这里面
*/
@Override
public void messageArrived(String topic, MqttMessage mqttMessage) throws Exception {
log.info("接收消息主题 : {}，接收消息内容 : {}", topic, new String(mqttMessage.getPayload()));
//发布消息主题
if (topic.contains("B/pick/warn/")){
MqttMsg mqttMsg = JSON.parseObject(new String(mqttMessage.getPayload(), CharsetUtil.UTF_8), MqttMsg.class);
//你自己的业务接口
log.info("接收消息主题 : {}，接收消息内容 : {}", topic, JSON.toJSONString(mqttMsg));

}
if (topic.equals("embed/resp")){
Map maps = (Map) JSON.parse(new String(mqttMessage.getPayload(), CharsetUtil.UTF_8));
//你自己的业务接口

}
//接收报警主题
if (topic.equals("embed/warn")){
Map maps = (Map) JSON.parse(new String(mqttMessage.getPayload(), CharsetUtil.UTF_8));
//你自己的业务接口
}
}

/**
*连接成功后的回调 可以在这个方法执行 订阅主题 生成Bean的 MqttConfiguration方法中订阅主题 出现bug
*重新连接后 主题也需要再次订阅 将重新订阅主题放在连接成功后的回调 比较合理
* @param reconnect
* @param serverURI
*/
@Override
public void connectComplete(boolean reconnect,String serverURI){
log.info("MQTT 连接成功，连接方式：{}",reconnect?"重连":"直连");
//订阅主题
myMQTTClient.subscribe(mqttConfiguration.topic1, 1);
myMQTTClient.subscribe("B/pick/warn/#", 1);
myMQTTClient.subscribe(mqttConfiguration.topic3, 1);
myMQTTClient.subscribe(mqttConfiguration.topic4, 1);
}
/**
* 消息到达后
* subscribe后，执行的回调函数
*
* @param s
* @param mqttMessage
* @throws Exception
*/
/**
* publish后，配送完成后回调的方法
*
* @param iMqttDeliveryToken
*/
@Override
public void deliveryComplete(IMqttDeliveryToken iMqttDeliveryToken) {
log.info("==========deliveryComplete={}==========", iMqttDeliveryToken.isComplete());
}
}

运行测试：

emqx 面板

ws 数据订阅
