浪潮服务器NVME 硬盘通过 Intel VROC 做RAID

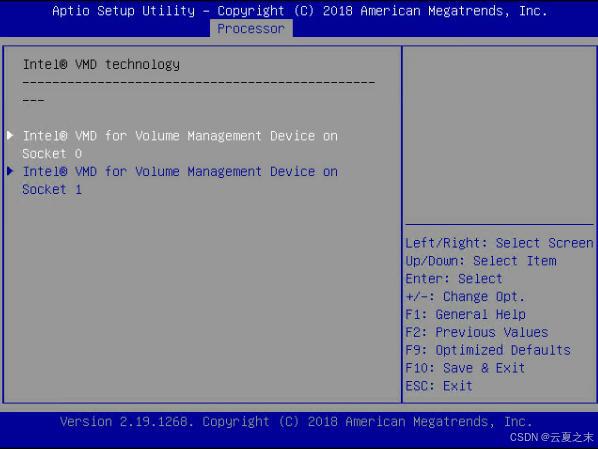

INTEL VROC Configuration solution 1.VMD configuration in BIOS Processor > IIO Configuration> Intel(R) VDM Technology> Intel(R) VMD for volume Management

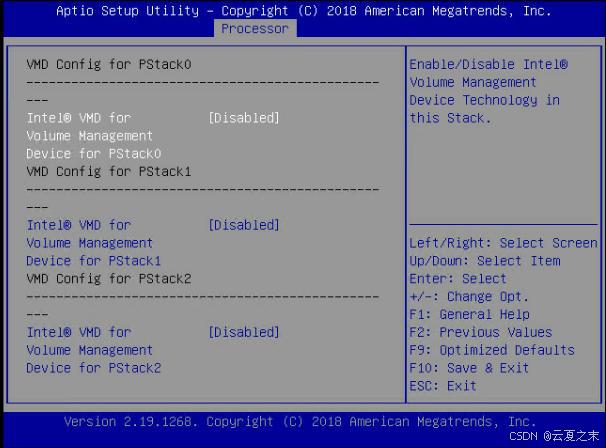

Device on Socket 0 “CPU 0”, Intel® VMD for volume management device for “PStack0” or “PStack XX” needs to select “disable” option.

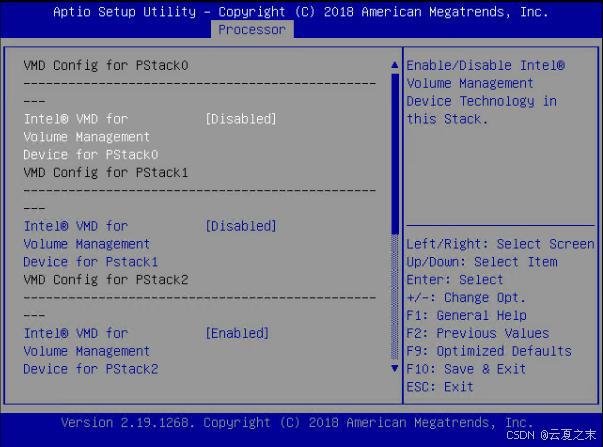

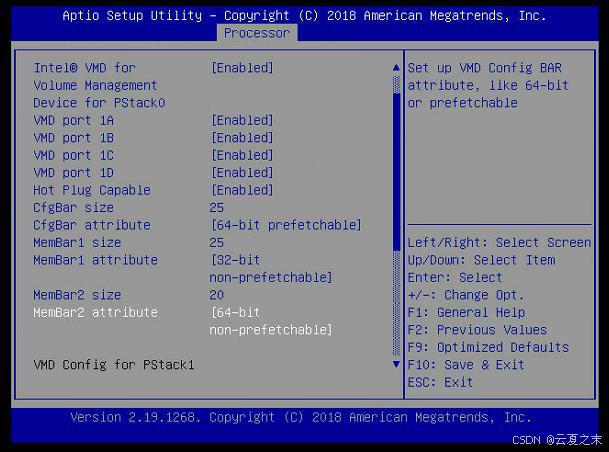

Device on Socket 1 “CPU 1”, Intel® VMD for volume management device for “PStack0” and “PStack1” needs to select “disable” option, “PStack2 ” needs to select “enable” option . VMD Port XX select “enable” option

Hot Plug able to select “enable” option Cfgbar XXX: maintain option MemBarXX  XXX:  maintain option If you already finished the above mentioned configuration, here after you must needs to reboot the server (because VMD will be started after reboot).

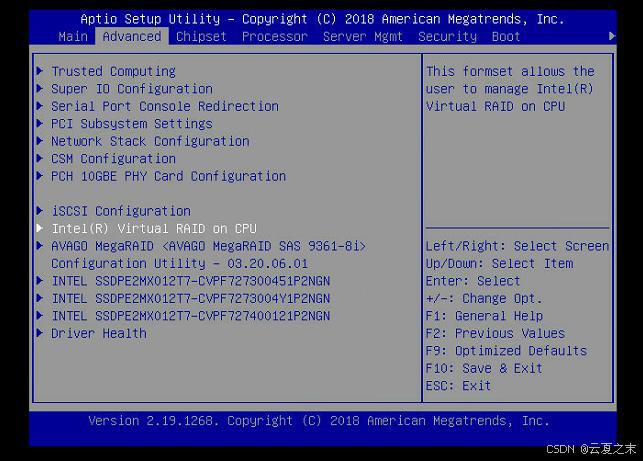

2.Advanced > Intel® Virtual RAID on CPU (VROC)

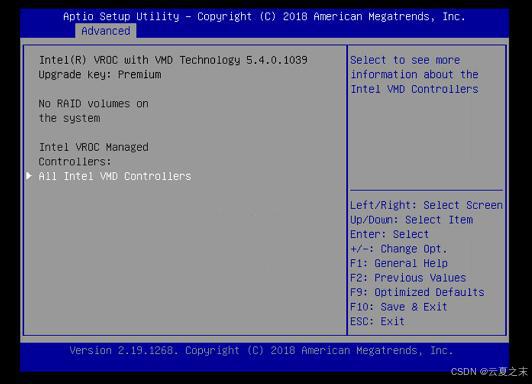

Advanced > Intel® Virtual RAID on CPU (VROC) > All Intel VMD Controllers

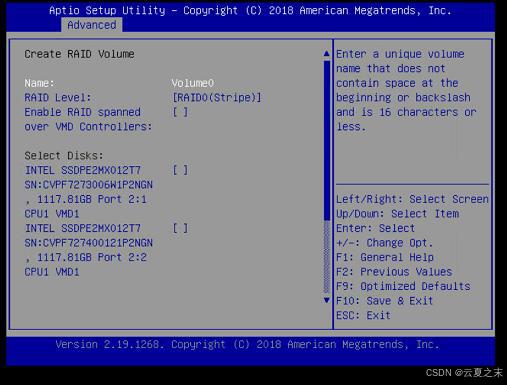

Advanced > Intel® Virtual RAID on CPU (VROC) > All Intel VMD Controllers > Create RAID Volume

3.RAID configuration

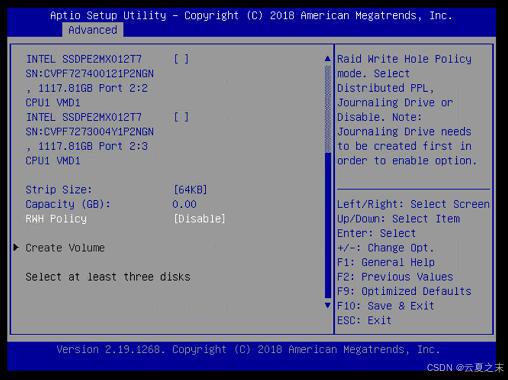

Name    Volume name Configuration RAID Level    RAID level configuration Enable RAID spanned    Create the RAID spanned volume Select DISK    Selects physical NVMe disks Strip size    Strip size option configuration Capacity (GB)    Volume capacity RWH policy    RAID Write Hole  policy Create volume    Create volume button is applicable after finishing all the configure option (space) or X    [ ]  indicates the disable, X indicates enable 4.OS Installation（ie, Redhat 7.4） 5.After OS installation，change the boot orders. BIOS > Boot-UEFI Hard Disk Drive BBS Priorities > Select “RedHat Boot Manager”

——————————————–
